Introduction to SMD Electronic Components
Surface Mount Devices (SMD) have revolutionized the electronics industry, providing compact and efficient alternatives to traditional through-hole components. This blog post will focus on SMD resistors and capacitors, their significance in electronic designs, and the different sizes available.
SMD Resistors: Size Matters
SMD resistors come in various sizes, commonly classified by a numeric code that indicates their dimensions in millimeters. For instance, the 0201 size measures 0.6mm x 0.3mm, making it one of the smallest available. Larger sizes like 0402, 0603, and 0805 are also prevalent, with 0603 being a popular choice due to its balance of size and ease of handling. When selecting an SMD resistor, it is crucial to consider the resistance value, size, and power rating to ensure compatibility with your circuit.
SMD Capacitors: A Variety of Choices
Just like resistors, SMD capacitors are available in multiple sizes, typically ranging from 0201 to 1210 or larger. The most common sizes used in consumer electronics are 0402 and 0603. Smaller capacitors are often employed in applications requiring more compact designs, while larger ones provide greater capacitance and voltage ratings. The choice of capacitor size can affect the overall performance of the circuit, particularly in high-frequency applications.
Conclusion and Image of SMD Components

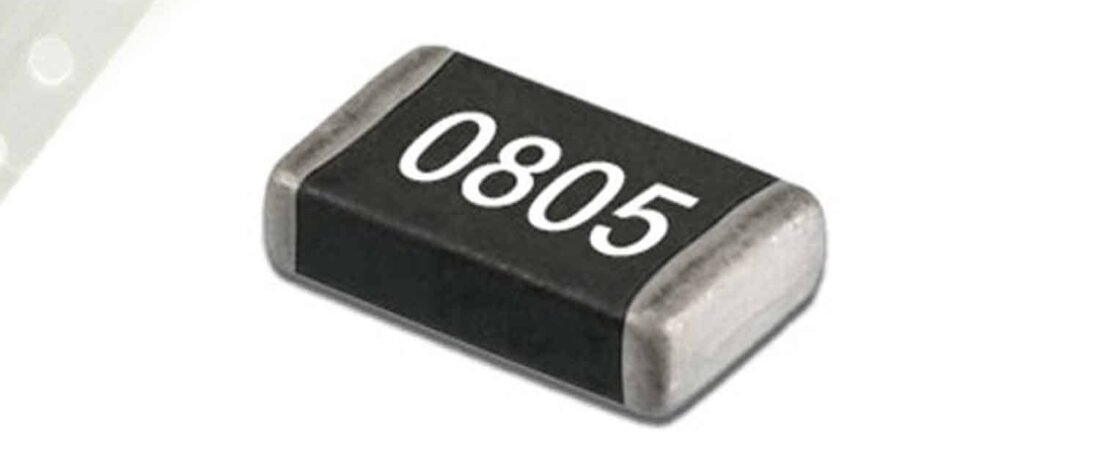

Understanding the sizes of SMD resistors and capacitors is vital for anyone involved in electronics design. Selecting the right components ensures optimal performance and reliability in electronic devices. Below is an image showcasing various SMD electronic components, highlighting the differences in size.
