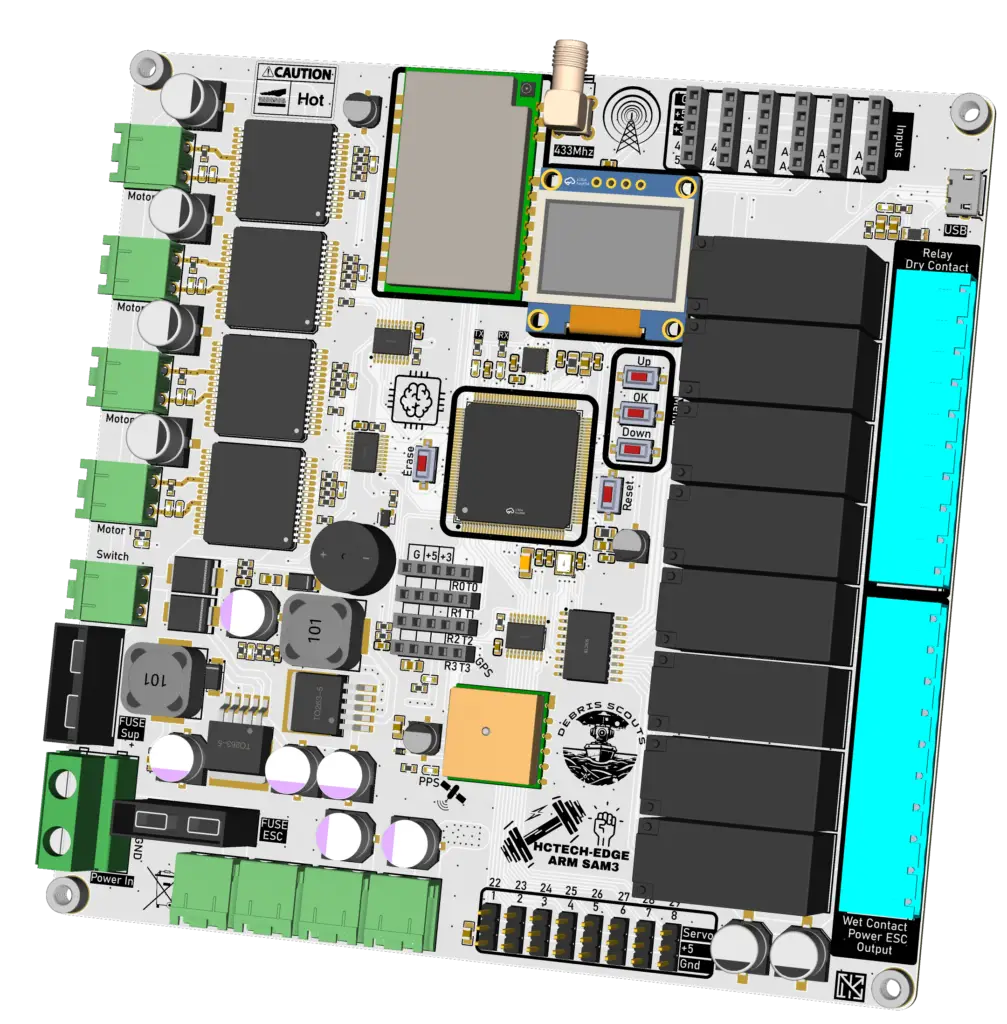

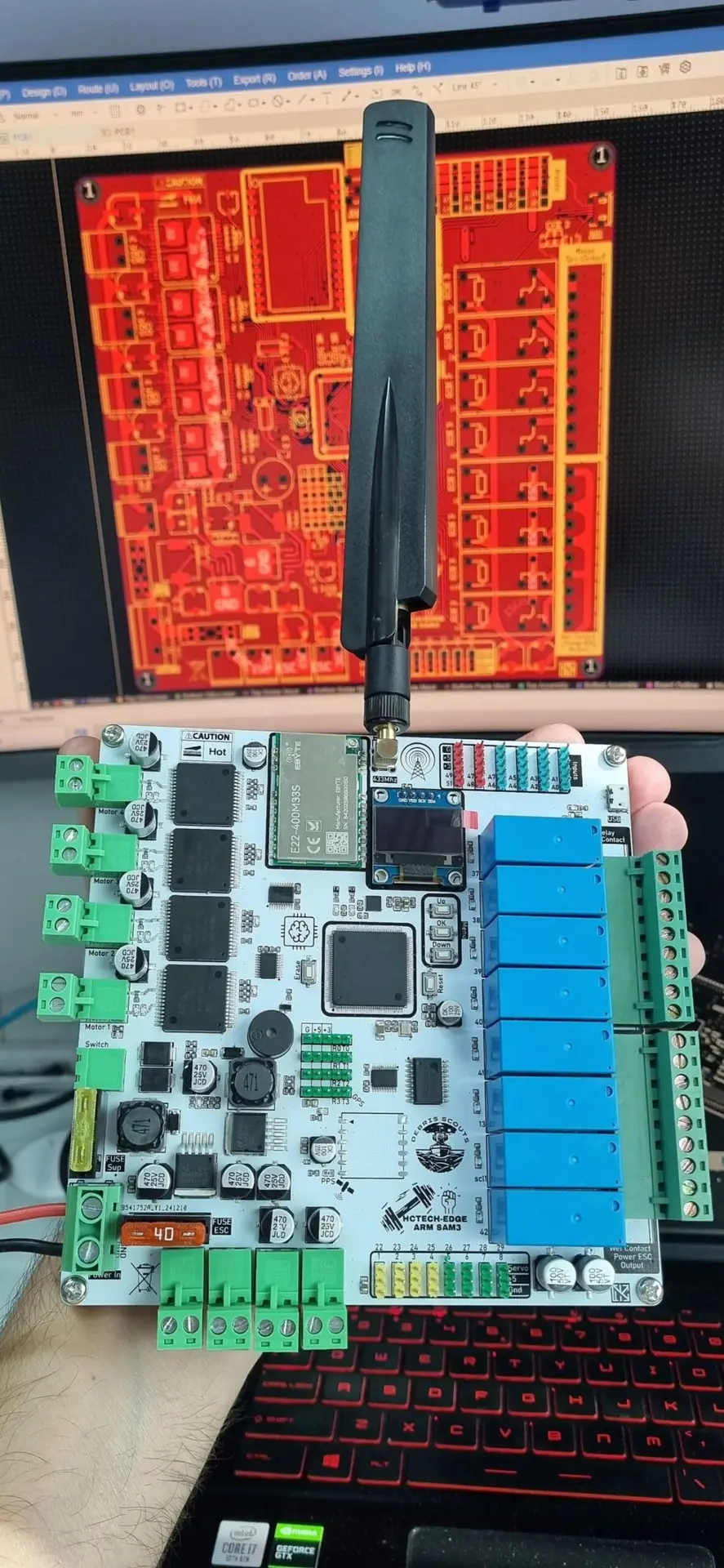

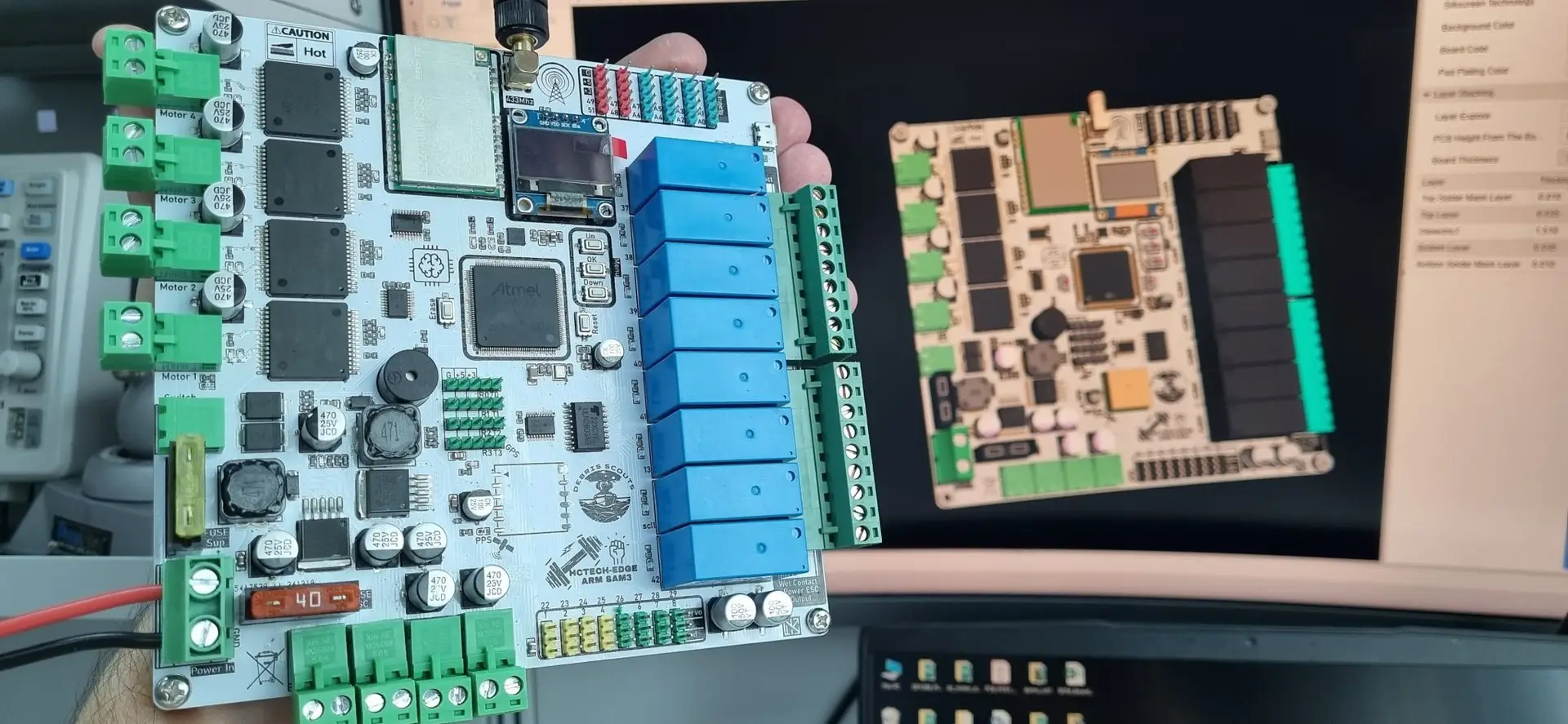

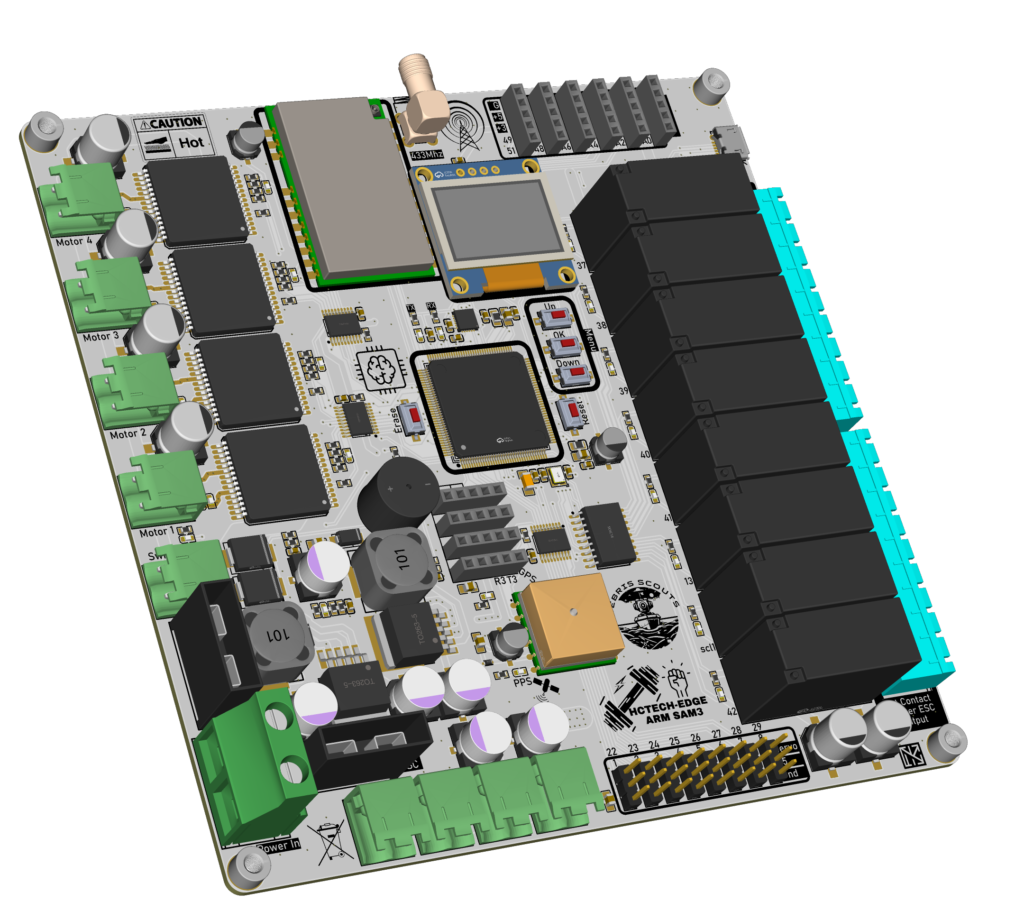

Advanced Robotics Control Board

Description

Engineered for high-performance mobile robotics, heavy-duty automated guided vehicles (AGVs), and complex autonomous systems, this industrial-grade control board delivers immense processing power and versatile peripheral integration on a single, highly integrated PCB. At its core lies the powerful Atmel/Microchip ATSAM3X8E ARM Cortex-M3 32-bit RISC microcontroller, providing the raw compute capability needed for intensive real-time navigation, sensor fusion, and actuator management.

Key Hardware Specifications & Features

Core Processing & Power Architecture

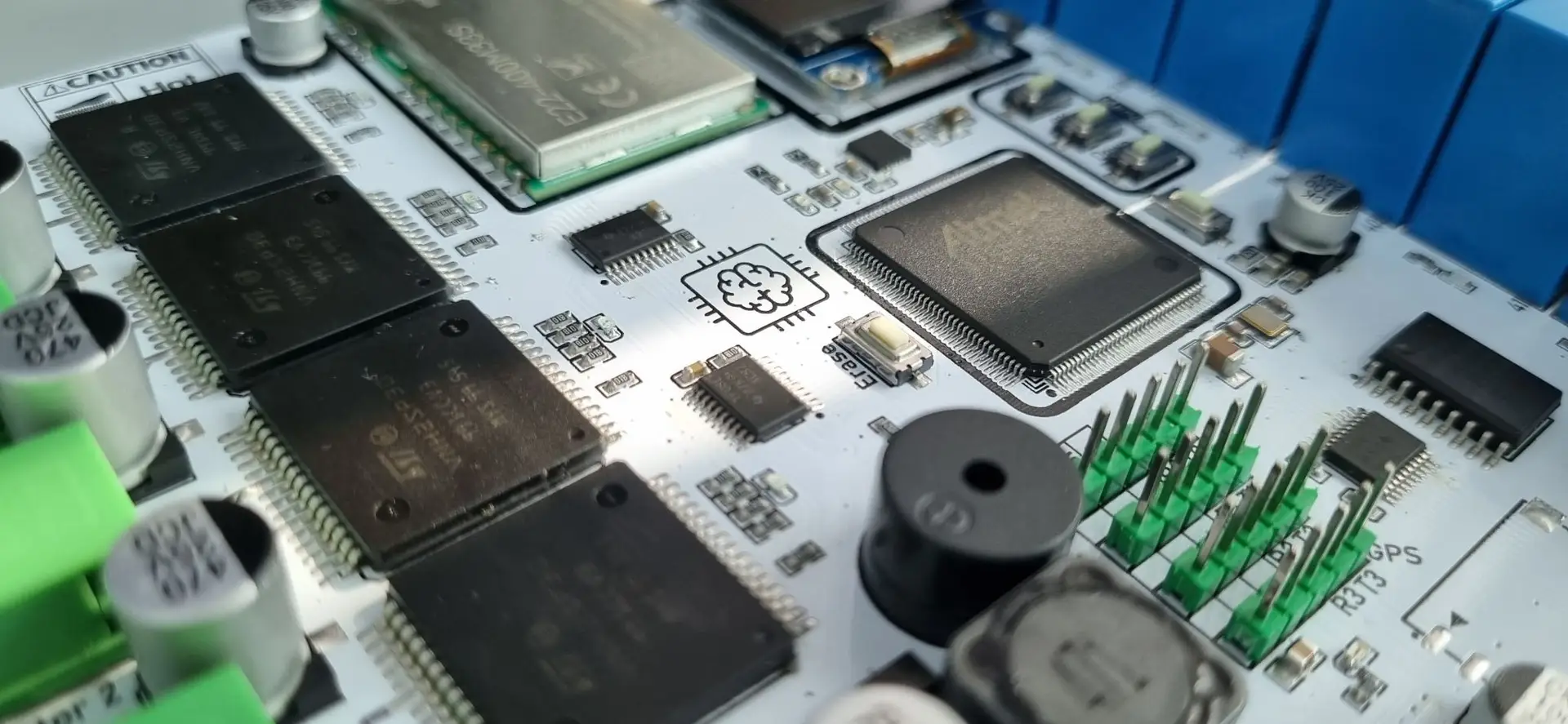

• Microcontroller: ATSAM3X8E (ARM Cortex-M3 running up to 84 MHz) with abundant flash and SRAM resources.

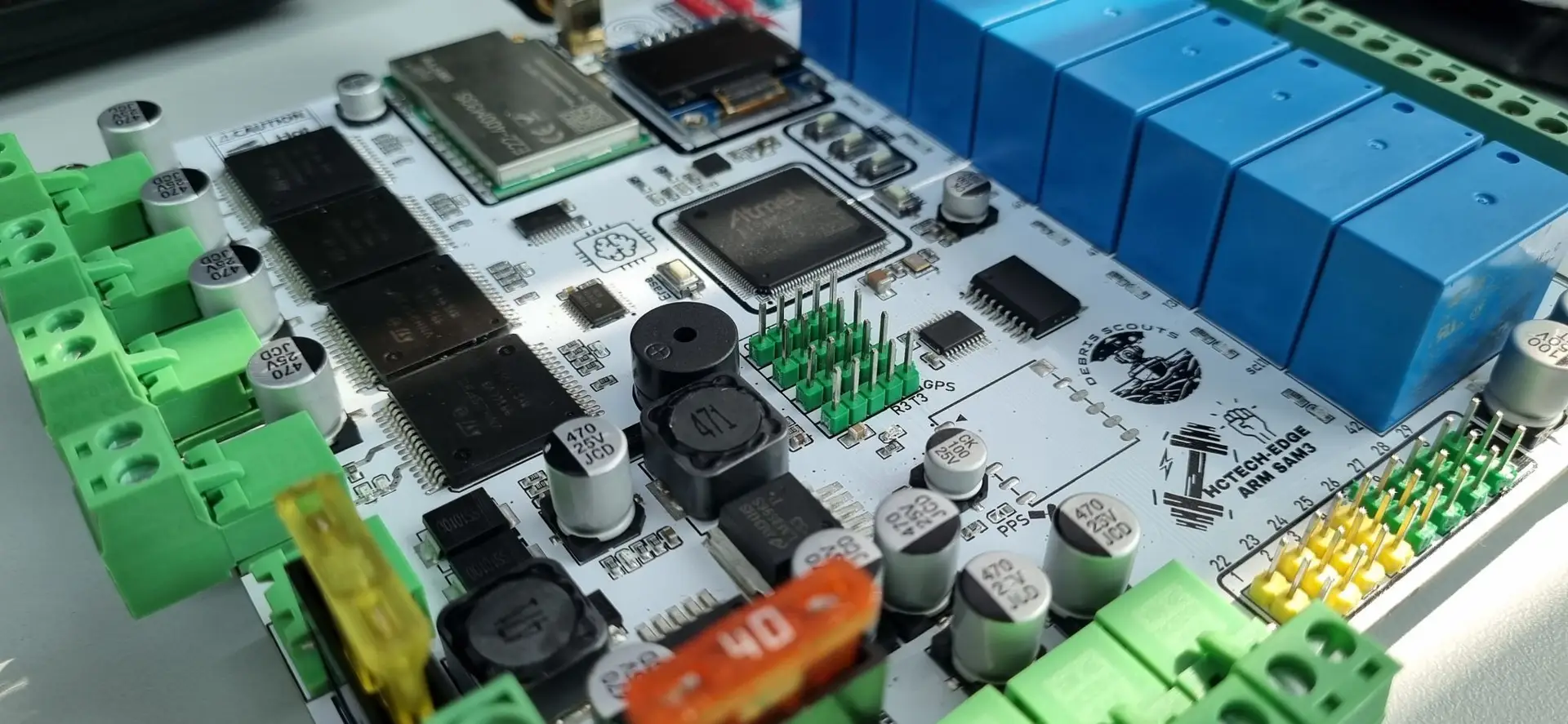

• On-Board Regulation: Dual high-efficiency LM2596 switching regulators providing dedicated, stable +5V and +3.3V rails from a wide primary input voltage range.

• Level Shifting: Integrated TXB0108PWR logic-level translators ensure seamless, bi-directional voltage translation between the 3.3V microcontroller domain and 5V external peripherals.

High-Power Motor Control Subsystem

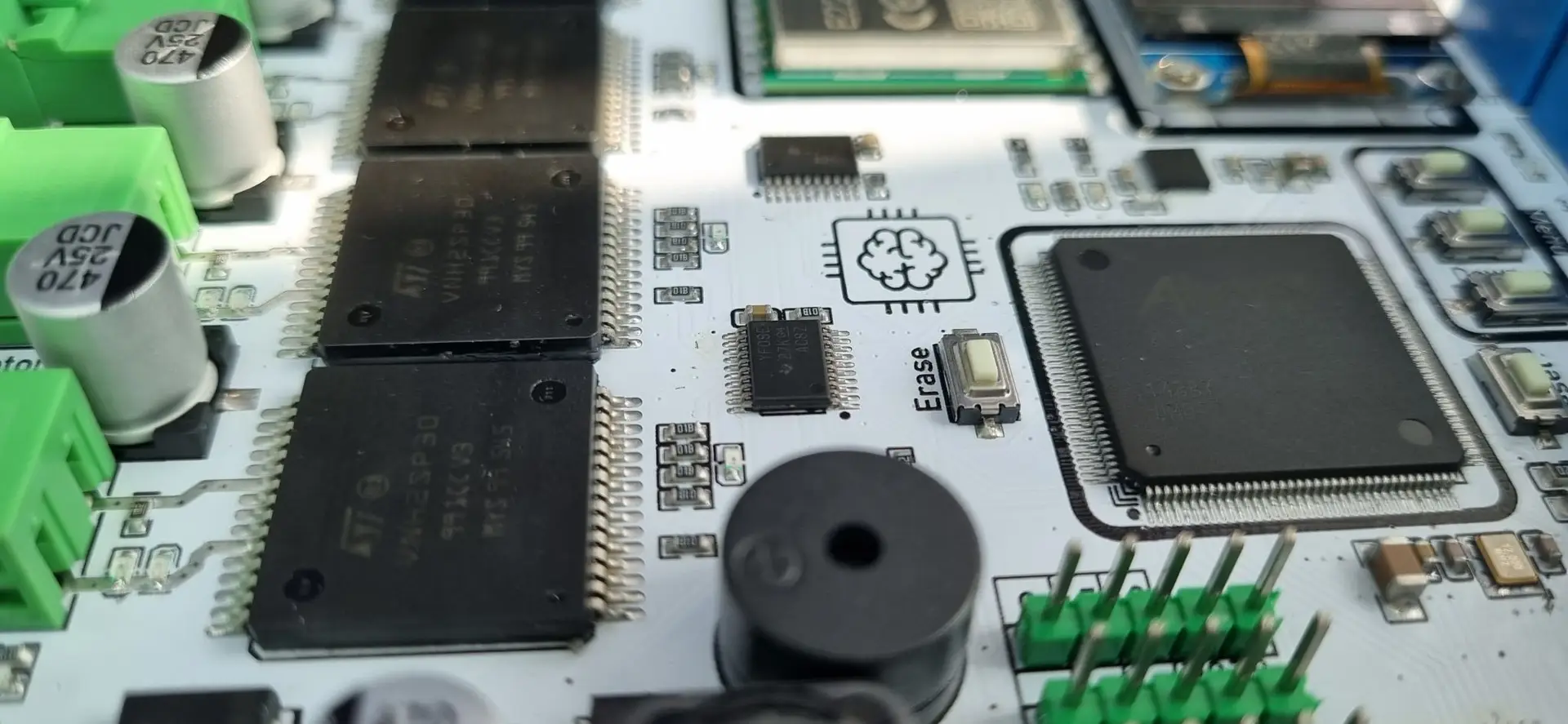

• Motor Drivers: Quadruple VNH3SP30-E H-bridge drivers capable of independently driving up to 4 heavy-duty “monster” DC motors with built-in current sensing, thermal shutdown, and diagnostic feedback.

• Robust Filtering: Comprehensive bulk capacitance and filtering circuits dedicated to the motor power rails to suppress high-frequency transient spikes and inductive kickback.

Actuation & Switching Outputs

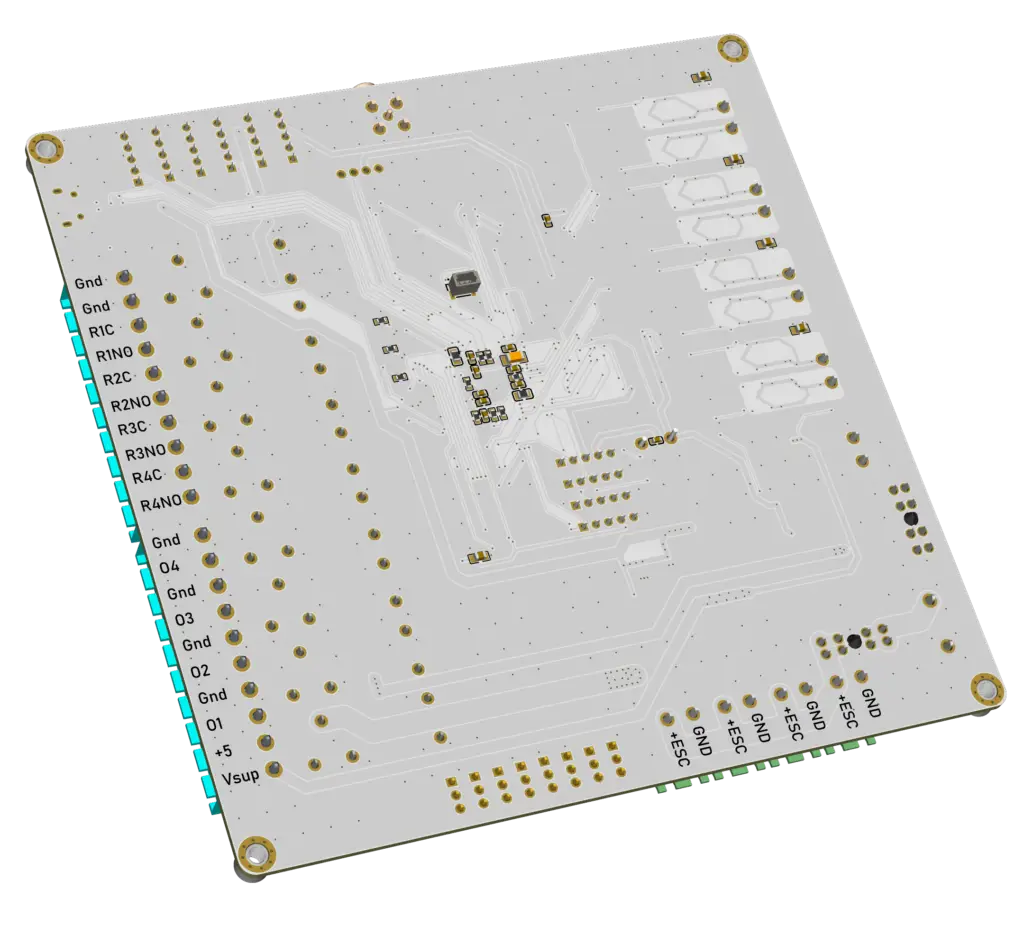

• Relay Array: 8 high-current output relays driven via a ULN2803ADWRG4 Darlington transistor array, featuring individual status indication LEDs for switching heavy loads, solenoids, or auxiliary actuators.

• Servo Channels: 8 dedicated 3-pin servo output headers level-shifted for precise control of robotic arms, pan-tilt mechanisms, or steering linkages.

Navigation, Telemetry & Sensor Suite

• Long-Range Telemetry: Integrated E22-400M30S LoRa module utilizing SPI communication and an external SMA antenna connection for robust, long-range wireless telemetry and remote operation.

• Positioning: On-board L80RE-M37 GPS module providing accurate positioning data via UART interface, backed by a real-time clock backup circuit.

• Inertial Measurement Unit: MPU-6050 6-axis accelerometer and gyroscope connected via I2C for precise orientation tracking, stabilization, and dead-reckoning.

• User Interface & Feedback: Integrated OLED display interface for real-time system diagnostics, plus an audio buzzer .

Comprehensive I/O

• Abundant analog input channels for sensor interfacing.

• Extensive digital I/O lines, hardware UARTs, SPI, I2C, and CAN bus expansion capabilities to adapt to any custom robotic ecosystem.

Designed for Extreme Reliability

Every section of the board—from the robust dual-stage buck regulation down to the isolated logic translation—has been meticulously routed to minimize noise interference between the high-current motor drivers and sensitive RF/navigation modules. Whether you are building an outdoor search-and-rescue rover, an autonomous agricultural vehicle, or an advanced combat robot, this controller provides the muscle and the brains right out of the box.
